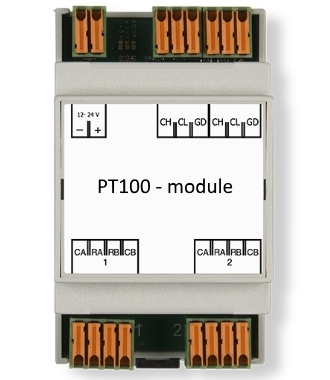

PT100(0) CAN-bus module

High precision dual temperature

The PT100(0) CAN-bus module is an industrial module which has dual temperature sensor inputs. The module supports PT100, PT1000 and NTC temperature sensors and converts the temperature with 12-bits accuracy.

The module has CE certification for both industrial and home use. The module uses simple CAN-bus packets and transmits temperature every second. Upon special request the module software can be updated to increase the frequency.

High precision

With dual independant 12-bit temperature compensated analog-to-digital converters the PT100 module is able to measure very accurate over a wide input range. This makes the module ideal for industrial applications.

ARM Cortex-M0 processor

The module has an internal ARM Cortex-M0 processor which runs at 48MHz. CAN-bus messages are processed quickly and there is room for custom application code if required. This way we can program the module to send out a signal to our digital CAN-bus module if a certain setpoint is measured.

Industrial use

The module is tested and CE certified for both home and industrial use. You can thus use it in industrial applications without having to worry about interference. The power supply voltage is between 12V and 24V, common for industrial use.

DIN-rail mount

The module comes in a standard DIN-rail housing. The housing can be stickered according to your specifications. There are many different therminal blocks possbile such as IDC, clamp and with screw.
